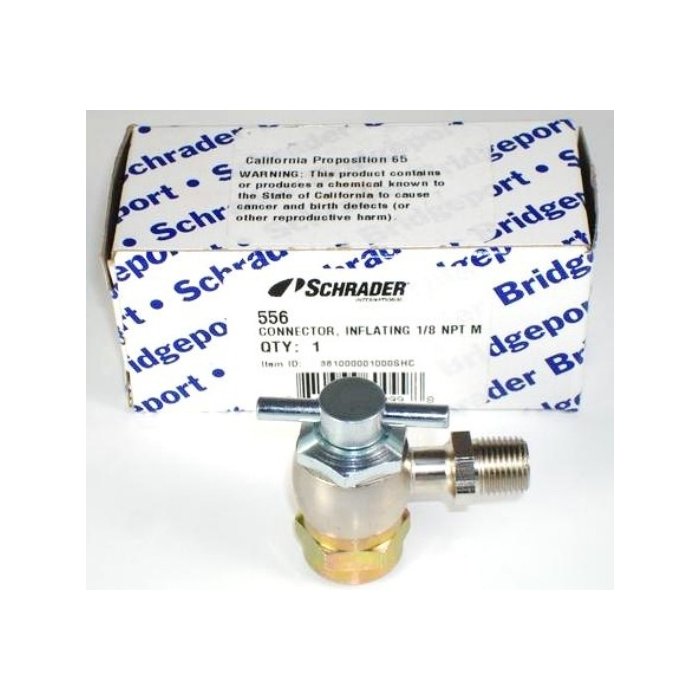

556 High-Pressure Inflating Connector 90º

 click to enlarge
Special Order
Schrader International

Condition: New
Model/SKU: SC556
Manufacturer: Schrader International
Shipping Weight: 0.30
Share This:
 bookmark facebook googlebookmarks twitter
Additional Images
556 High-Pressure Inflating Connector 90 Degree
556 High-Pressure Inflating Connector 90 Degree
Purchase Options
Quantity:

556 High-Pressure Inflating Connector 90º

âš  WARNING: This product is known to California to cause Cancer and or Reproductive Harm - www.P65Warnings.ca.gov.



These high-pressure inflating connections attach securely by hand or wrench to the valve cap threads of high pressure valves. Can be fitted to gauging and inflating devices by a variety of methods. Various angles permit easy attachment to hard-to-reach valves.




  • Pressure rating 3,000 PSI
  • Fits Thread Size .305-32
  • Air Line Connection 90° To Axis Of Valve
  • Has Core Depressor Pin Copper Sealing Washer
  • Recommended Max. Torque To Valve Mouth*
  • 1/8" MNPT
  • Equivalent to Dill 8921 & Haltec H-556





*It may be necessary to replace sealing washers after a number of uses to insure sealing on valve mouth.
